易博仕铝蜂窝复合板，不同规格尺寸都具有极高的平整度、并且有不易变形的优点，面板主要采用氟碳辊涂铝板。氟碳辊涂铝板最重

要的一点是采用了连续的辊涂工艺，铝板的涂漆是一次性完成的，产品无色差涂层流平度好，质量可靠，能长时间保持建筑物外墙颜

色鲜艳。经过长期热晒雨淋或工业废气污染后，很明显辊涂板要比喷涂洁净光亮，并具有良好的附着力和耐候性。

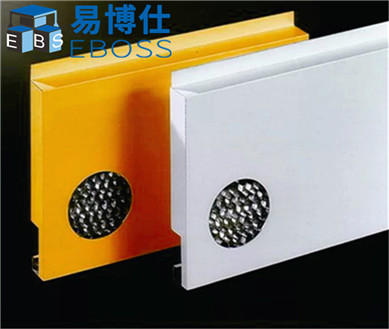

Aluminum honeycomb panel of different specifications and sizes are with a high degree of flatness,and has the

advantage of uneasy to be deformed,the panel is mainly made of fluorocarbon roll-coating aluminum sheet.The

most important feature of the fluorocarbon roll-coating aluminum sheet is the use of a continuous roll-coating

process,the coating of the aluminum sheet is completed once ,the product has no color difference and the smooth

flow ability is good,the quality is reliable,it can keep the exterior wall of the building in brilding color

for a long time.After long time of sunshine and rains or pollution of industrial waste gas,obviously the roll

-coated sheets are more clean and bright,and has a better adhesion and weather resistance over spray painted sheets.

易博仕铝蜂窝板产品原材料介绍

铝面板：主要选用优质的3003H24合金铝板或5052AH14高锰合金铝板为基材，厚度为0.7~1.5MM的氟碳滚涂板

铝底板：底板厚度为0.5~1.0MM

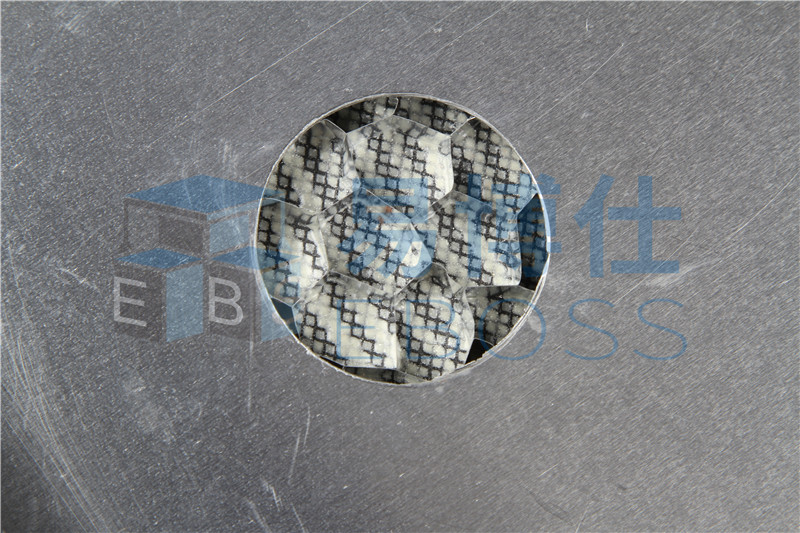

铝蜂窝：芯材采用六角形3003H18型铝锋芯，铝箔厚度0.04~0.07，边长5-6MM

胶粘剂：采用双组份高分子环氧胶膜和双组份改性环氧树脂

Product Raw Materials

Aluminum panels:mainly selected high quality 3003H24 alloy aluminum sheet or 5052AH14 high manganese alloy aluminum

sheet as the base material,fluorocarbon roll-coated sheet with thickness of the 0.7~1.5MM.

Aluminum sheet:base sheet thickness is 0.5~1.0MM.

Alumunim honeycomb:core material using hexagonal 3003H18 type aluninum honeycomb core,with aluminum foil thickness

 is 0.04~0.0.7,edge length is 5-6MM.

Adhesive:two-component of polymer epoxy film and two-component of modefied epoxy resin.

铝蜂窝复合板的优点

易博仕生产的铝蜂窝复合板由于蜂窝材料具有抗高风压、减震，隔音、保温、阻燃和比强度高等优良性能。国外六十年代已在民用

各领域使用，而且发展很快，我国最近几年蜂窝技术才在民用工业的各领域应用。铝蜂窝板幕墙以其质轻、强度高、刚度大等诸多

优点，已被广泛应用于高层建筑外墙装饰。总厚度为15mm，面板底板均为1.0mm厚的铝蜂窝板只有6Kg/㎡。具有相同刚度的蜂窝板

重量仅为铝单板的1/5，钢板的1/10，相互连接的铝蜂窝芯就如无数个工字钢，芯层分布固定在整个板面内，使板块更加稳定，其

抗风压性能大大超于铝朔板和铝单板，并具有不易变形，平面度好的特点，即使蜂窝板的分格尺寸很大。也能达到极高的平面度，

是建筑业首选的轻质材料。

Advantages of Aluminum honeycomb panel

Eboss Honeycomb material has excellent performance of resisting high wind pressure, shock absorption, sound

insulation, heat preservation, flame retardance and high specific strength. Foreign countries in 60s have been

used in various fields of civil, and the development is very fast. In recent years, cellular technology has been

applied in various fields of civil industry.

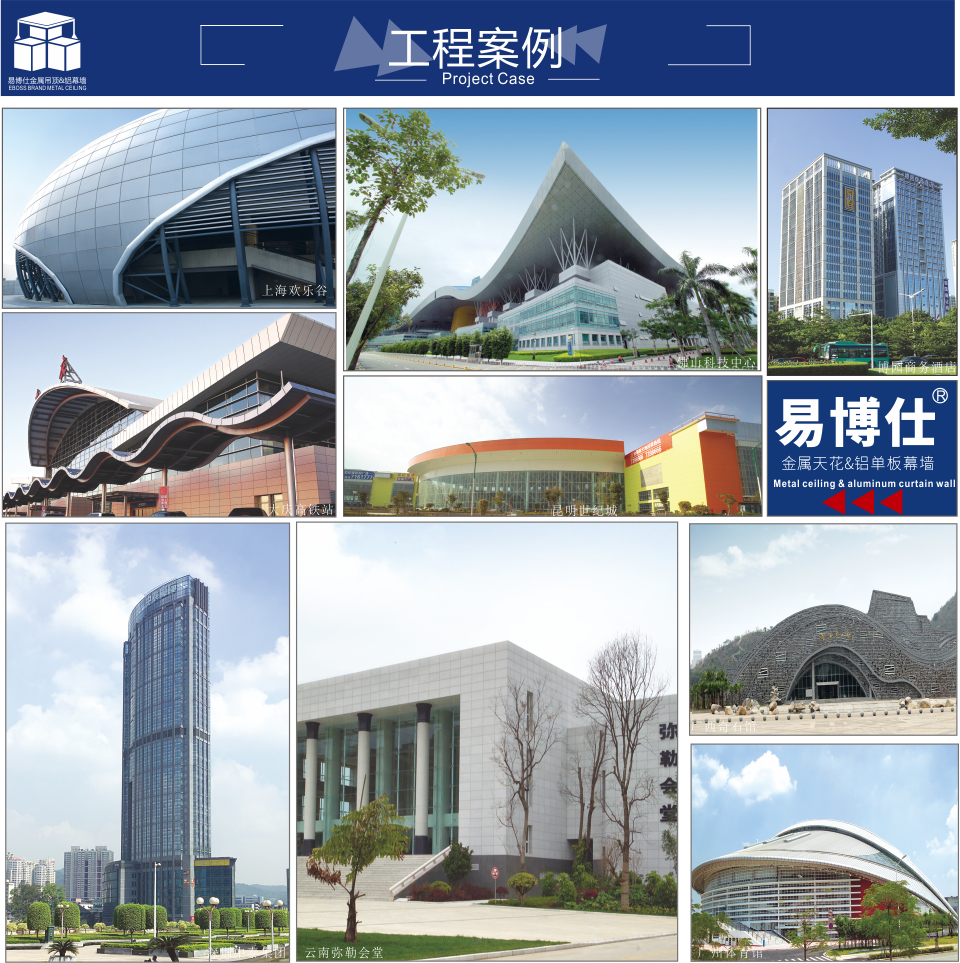

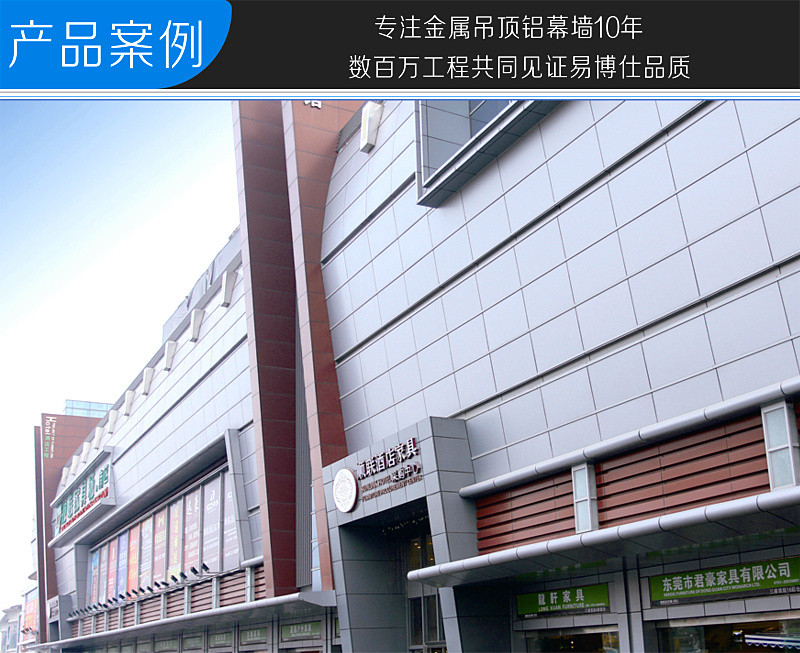

Aluminum honeycomb panel curtain wall has been widely used in high-rise building exterior wall decoration because

of its many advantages such as light weight, high strength and large rigidity.

The total thickness of 15mm and base plate are 1.0mm aluminum honeycomb plate thickness is only 6Kg/ square meters.

With the same weight of honeycomb board stiffness is only single aluminum plate 1/5, 1/10 steel plate, aluminum

honeycomb core are connected with each other as numerous I-beam, core layer distributed within the whole panel,

the plate is more stable, the wind resistance performance greatly than aluminum plate and aluminum plate back, and

has not easy to deformation, good flatness characteristics, even if the honeycomb plate lattice size. Can also achieve

extremely high flatness, is the construction of the preferred light materials.

易博士铝蜂窝复合板用途

易博仕铝蜂窝复合板一般适用于建筑幕墙外墙挂板，室内装饰工程，广告牌，船上建筑。航空制造业。室内隔断及商品展示台，

商用运输车和货柜车车体，公共汽车，火车，地铁及轨道交通车辆。

Applications of Aluminum honeycomb panel

Honeycomb cladding is generally applicable to the hanging sheets of the constrution cladding ,interior decoration

projects,advertising signs, buildings on ships,aviatin manufacturing ,indoor partitions and commodity display

platforms ,commercial transport vehicle and container vehicle bodies,buses,trains,subways and rail vehicles.
