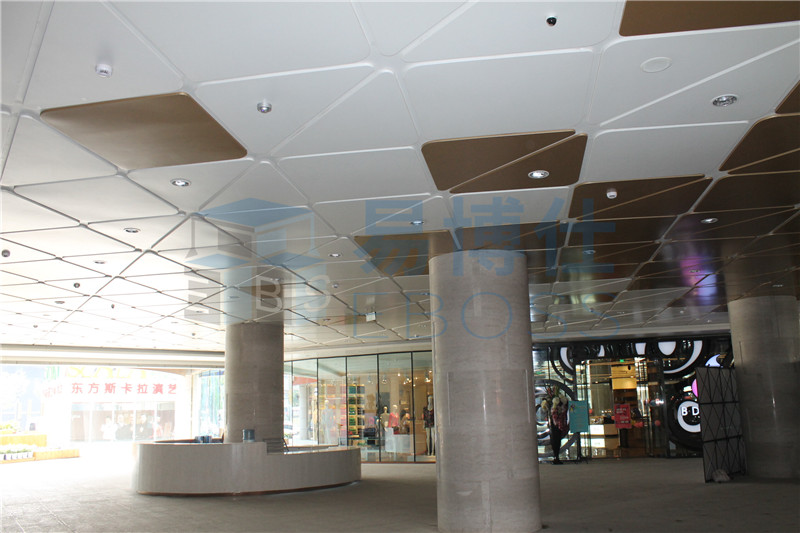

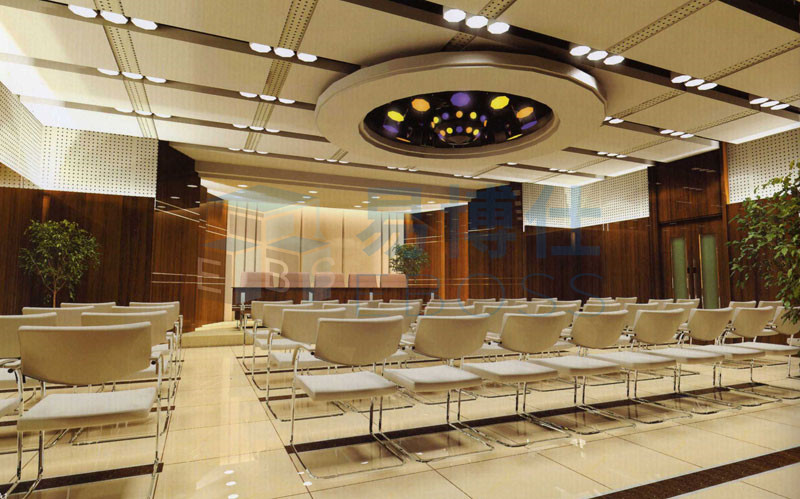

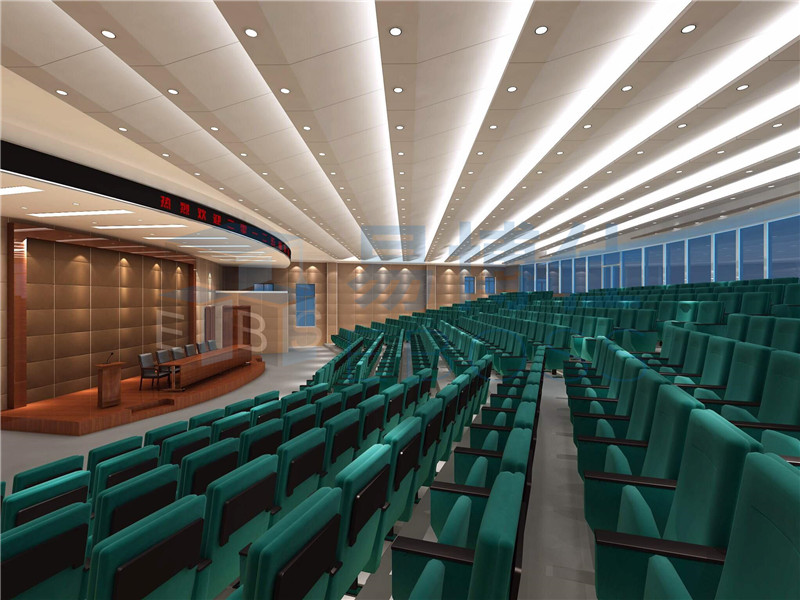

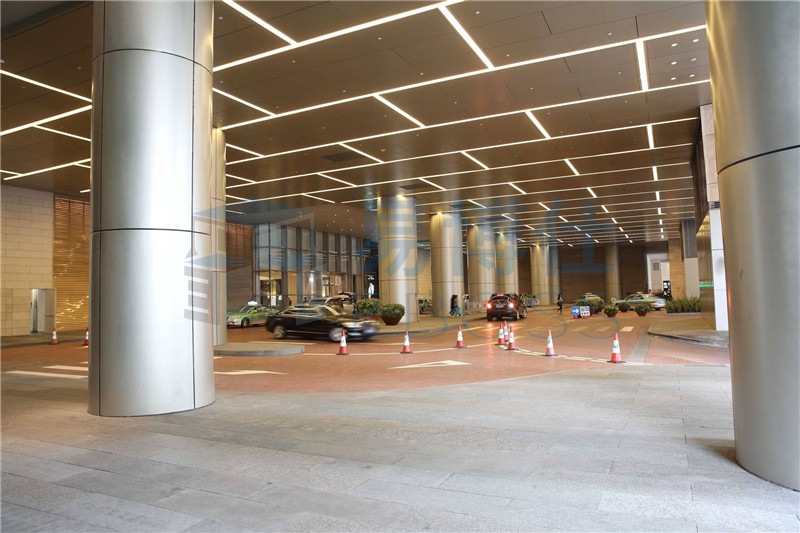

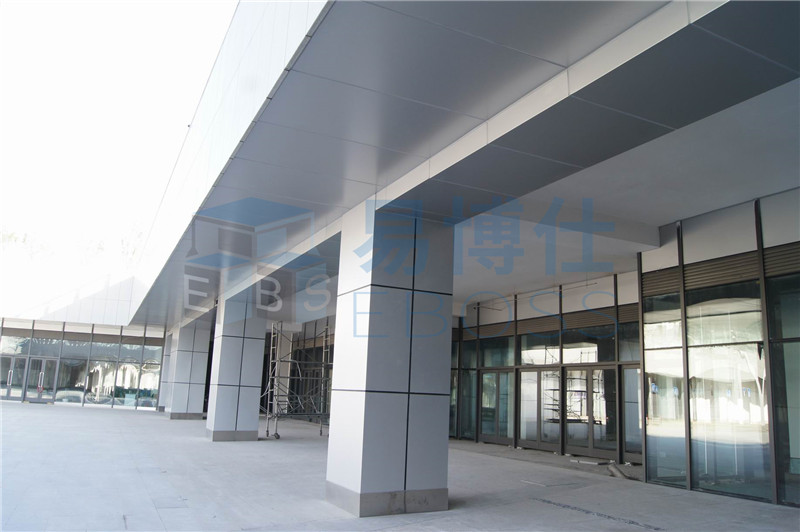

易博仕幕墙氟碳铝单板常用于户外和室内装修。户外可适用于建筑外墙，户内可用于内墙装修，风格简洁大气。质量轻，安装维护

便捷。整体风格统一的户外室内建筑幕墙，不仅实用，而且美观。铝单板是采用优质铝合金板材为基材，再经过数控折弯等技术成

型，表面喷涂装饰性涂料的一种新型幕墙材料。现如今大多数的建筑都利用此种材料来做外墙或室内的装饰，该板材耐用时间长，

回收率非常高，完全称得上是环保绿色建材，非常适合各种建筑使用。

The fluorocarbon aluminum cladding is often used in outdoor and indoor decoration.The application for outdoors is

suitable for building exterior wall,and for indoor it can be used for interior wall decoration,with a simple and

dignified style.Light  in weight,easy and convenient for installation and maintenance.The overall style is unified

for the outdoor and indoor constructed curtain walls,not only practical,but also beautifl.The aluminum cladding is

a new type of decorative coating material using high quality aluminum alloy sheet as the base material,and the formed

through the numercal conteol bending material using high quality paint the surface with decorative coating.Nowadays,

this material is used to make the external wall or interior decoration for most of the buildings,the sheet is durable,

with high recovery rate,ti can really ba called as green buaiding materials,and is very suitable for all kinds of construction.

*氟碳漆耐腐蚀、抗紫外线，而且不褪色、寿命长。

*漆层均匀，色泽光亮。

*种类多样：板型、颜色、按缝等。

*质量保障，经久耐用。

*可按需要大小定制加工，满足不同的施工设计方案。

*安装维护简便灵活，降低施工和维护成本。

*铝合金材质可实现完全回收再利用，绿色环保。

*Fluorocarbon paint is corrosion corrosion resistant and anti-ultraviolet,with no fade and long service life.

*The coating is uniform,color is bright.

*Species diversity:Sheet type,color,joints,etc.

*Quality assurance,durable.

*Can be customized according to the requirements of the size to meet different construction and maintenance.

*The anstallation and maintenance are simple and flexible,reduced the cost of construction and maintenance.

*Aluminum alloy materal can be completely recycled,green and environmental friendly.

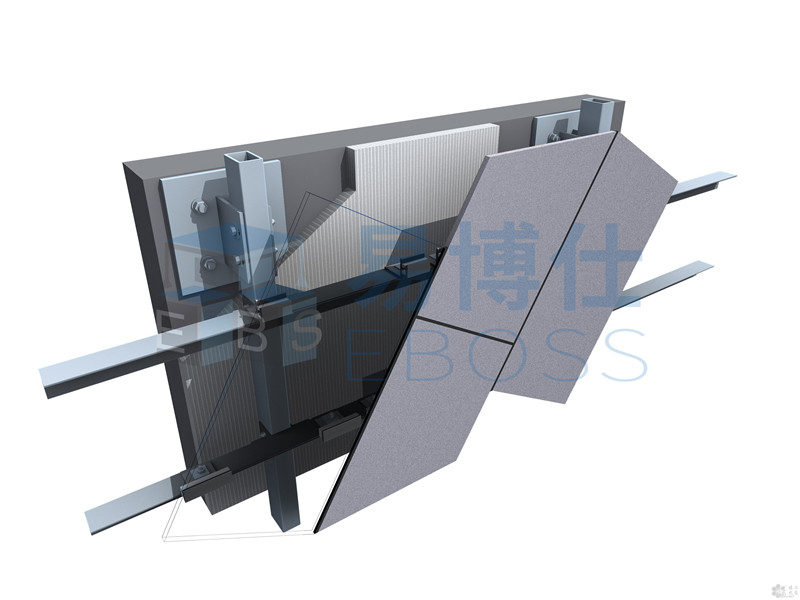

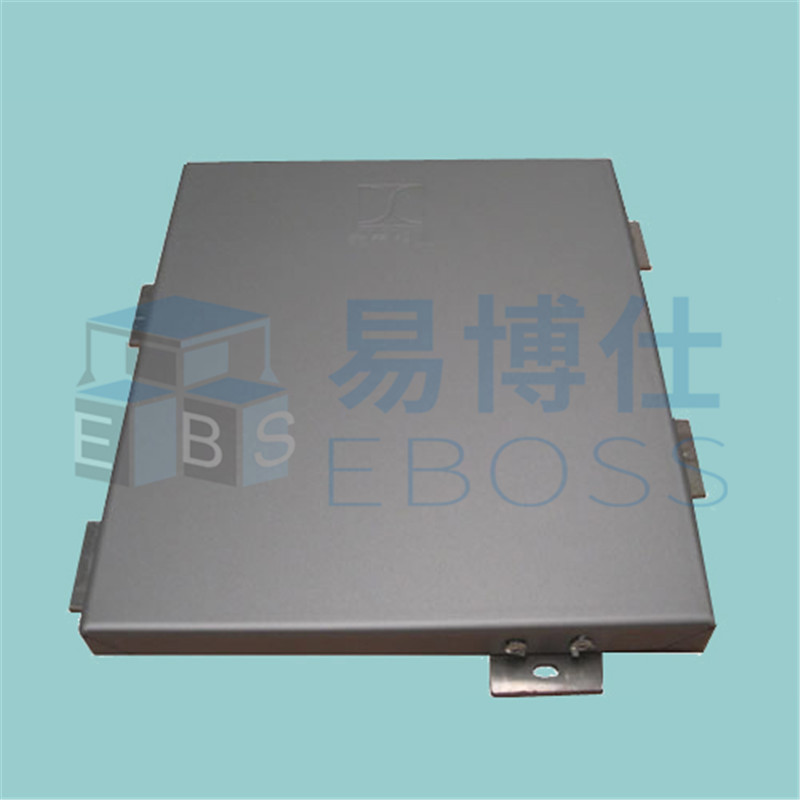

铝单板幕墙采用优质高强度铝合金板材，其常用厚度为2.0，2.5，3.0，型号为3003，状态为H24.常规材料最大尺寸为1220mm*2400mm。

其构造主要由面板、加强筋和角码组成。角码可直接由面板折弯、冲压成型，也可在面板的折边上铆装角码成型。加强筋与板面后的

电焊螺钉连接，使之成为一个牢固的整体，极大增强了铝单板幕墙的强度与刚性，保证了长期使用中的平整度及抗震能力。如果需要

隔音保温，可在铝板内侧安装高效的隔音保温材料。

The aluminum cladding is made of high quality and high strength aluminum alloy sheet,common thickness used is 2,2.5,3,

type 3003,and status H24.The maximum size of the conventional material is 1200mm*2400mm.The structure is mainly composed

of panels,stiffeners and bracket components.The bracket components can be directly formed from thr psnel through bending

and pressing,and can also be formed through mounting the brackets on the hems of the panel.The stiffeners are connected

to the welding screw on the back of the panel,to become a solid whole component,has greatly enhanced the strength and

rigidity of the aluminum cladding,and ensured the smoothness and seismic capacity in the long-term use.If noise and

heat insulation is needed,material with high effciency of noise and heat insulation can be installed in the inside of

the aluminum sheet.
