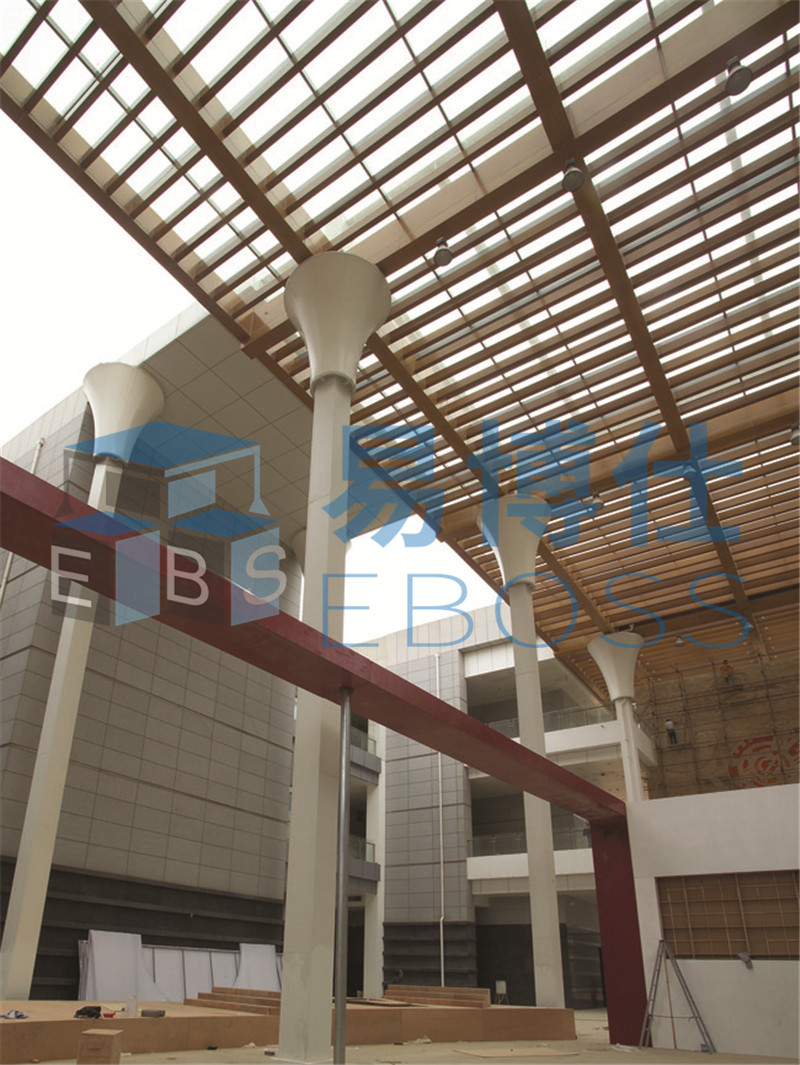

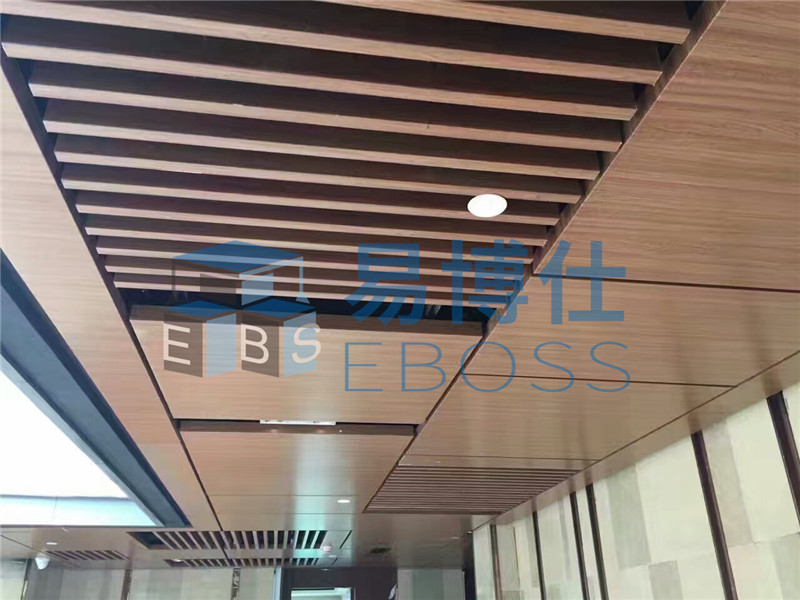

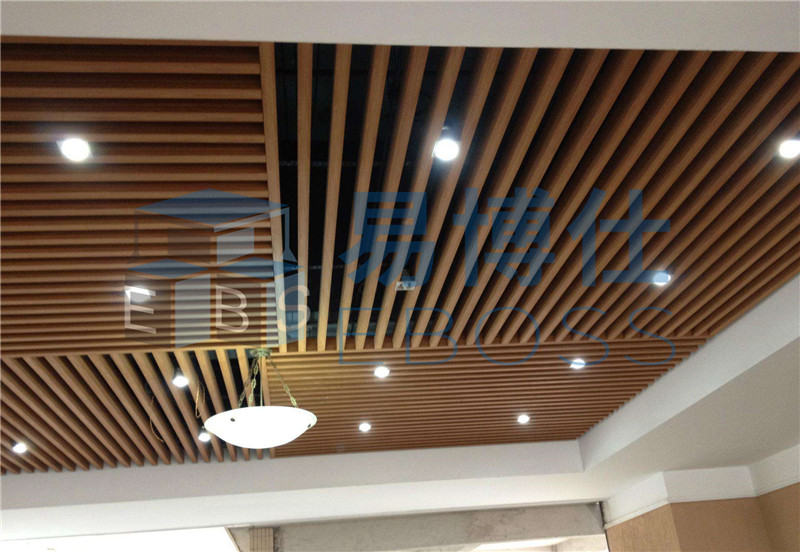

易博仕木纹铝方通的解说重点应放在“木纹”两字身上，“木纹”指的是产品的表面处理工艺。指的是在原有铝方通的表面基础上

添加木纹纹理的工艺，使得铝方通具有木纹纹理的图案，非常接近原生木材的效果。整体效果线条明快整齐，层次分明，体现了简约

明了的现代中式风格，安装拆卸简单方便，成为近几年风靡装饰市场的主要产品。

The explanation of wood texture aluminum baffle ceiling should be placed on the  "wood texture". Eboss "Wood texture"

refers to the surface treatment process of products. The process of adding wood texture texture on the surface of the

original aluminum baffle ceiling , makes the aluminum baffle ceiling has the pattern of wood texture, and is very close

to the effect of native wood. The whole effect is neat and neat, and the level is clear. It  embodies the simple and clear

modern Chinese style. It is easy to install and disassemble. It has become the main product of popular decoration market

in recent years.

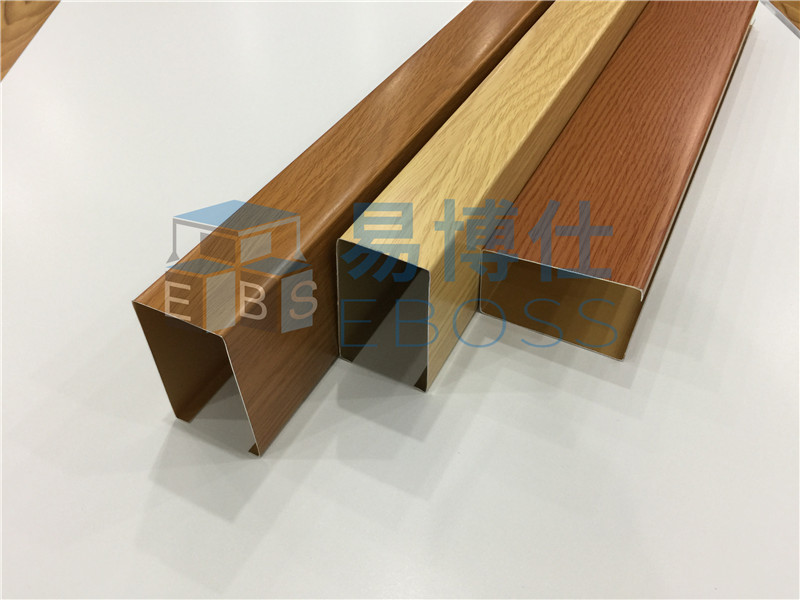

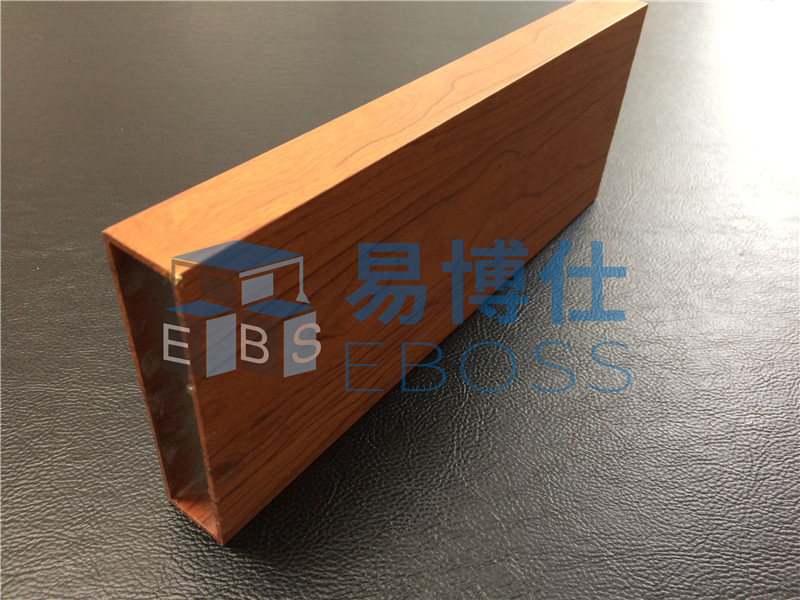

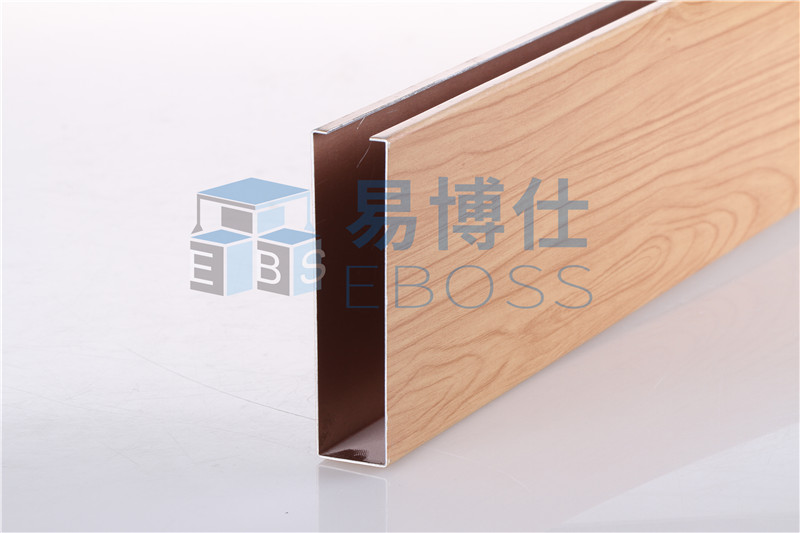

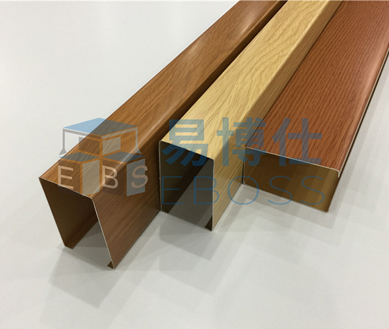

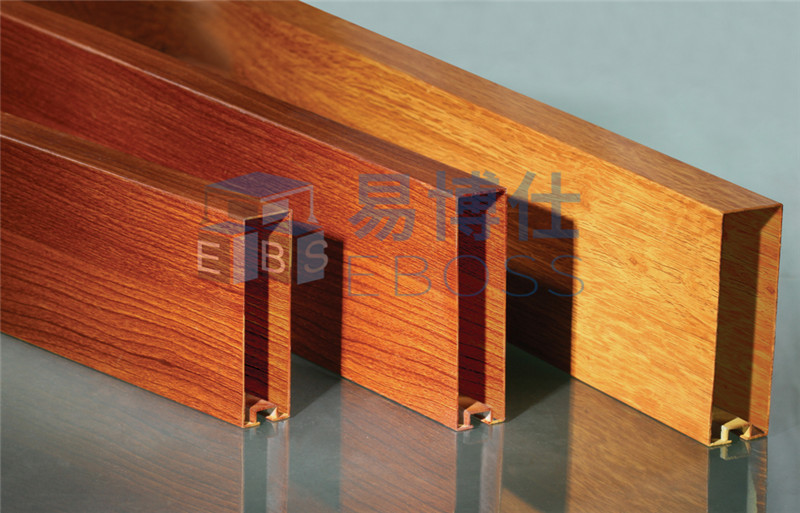

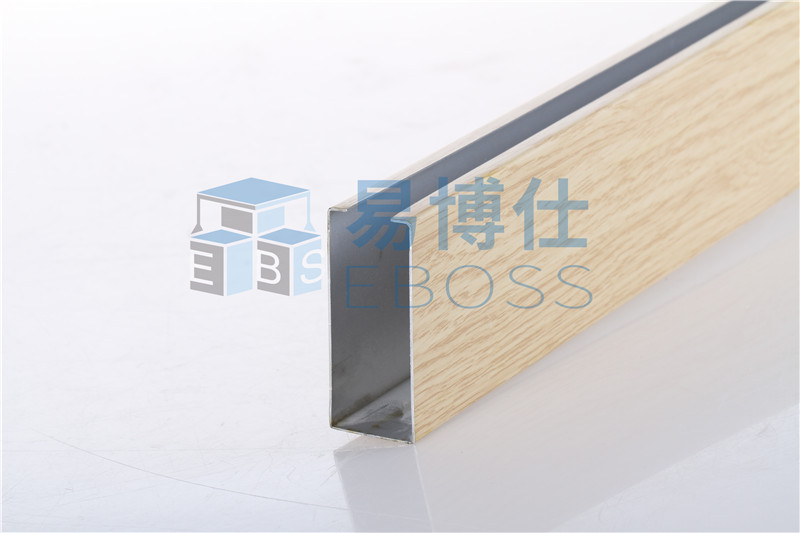

易博仕铝方通吊顶可分为板材铝方通（我们经常说的U型铝方通）、型材铝方通、造型铝方通（弧形铝方通和波浪纹铝方通），这些

铝方通都可以做多种不同的表面处理工艺。大致分为：黑、白、灰色以及一些鲜艳纯色、木纹色。

EBOSS Aluminum baffle ceiling can be divided into sheet aluminum baffle (Same as U-Shaped aluminum baffle)、

quadrate-pipe aluminum baffle、 modeling aluminum baffle ceiling(Arc-Shapedaluminum baffle and wave aluminum baffle),

these can be done in a variety of different surface treatment processes. Roughly divided into black, white, gray, and some

bright solid colors, wood grain color.

木纹铝方通的工艺区分

Surface treatment of wood grain

静电粉末喷涂：

静电粉末喷涂的生产是采用垂直挂件，通过喷涂机械或人工手动喷枪，在静电场中进行垂直方向的喷涂，然后再逐个把

挂件放入烤炉中烤漆，如此反复操作多次便形成烤漆涂层，喷涂层的均匀与否，与厂家的设备有很大关系。此种工艺只能做纯色，黑白

灰或者一些色彩艳丽的颜色，因为工艺的原因不支持生产木纹色，哑光带些许磨砂效果的表面纹理，对产品的厚度无太大要求，适合室内。

Electrostatic powder spraying

Electrostatic powder spraying is the production of vertical pendant, by spraying machinery or manual spray gun, spraying

in the electrostatic field in the vertical direction.And then put the pendant into the oven baking paint one by one, so

repeated operation many times to form stoving varnish, spraying layer even or not, and the equipment of the factory has

a great relationship. This process can be a solid color, black and white or colorful color, because the process is the

reason does not support the production of wood color, surface texture with a matte matte effect, without too much

requirements on the thickness of the product, suitable for indoor.

覆膜工艺：

光泽鲜艳，可挑选花色的品种较多，防水、防火，具有优良的耐久性（耐候性、耐蚀性、耐化学性）和抗污能力，防紫外

线性能优越。覆膜分进口膜与国产膜，进口膜的耐久性、光泽度要好于国产膜，保持十年以上不褪色、不变色，颜色众多，感官好，

不易沾灰，容易打理。作为铝方通吊顶材料，它有天然的优点：不退色、不脱落、不变形、不沾油烟、易清洗，时尚靓丽，耐潮湿，

抗酸碱，而且有很高的性价比。

film covering process：

The selected color is more, waterproof, fire protection, has good durability (weather resistance, corrosion resistance,

chemical resistance) and dirt resistance, UV protection performance is superior.Film imports and domestic film, imported

film durability, gloss better than domestic film, to maintain more than ten years without fading, no discoloration, many

colors, good sense, not easy to ash, easy to care.As aluminum square ceiling material, it has natural advantages: no

fading, no fall off, no deformation, no oil fume, easy to clean, fashionable, beautiful, resistant to moisture, acid

and alkali resistance, and has a high cost performance.

辊涂（滚涂）：

可以做纯色和木纹色，生产工艺的不同，产品生产的时候不会产生色差。滚涂板表面漆膜的平整度要高于静电粉末喷涂。色泽上分珠

光与哑光，市面上常用为珠光。滚涂最大特色就是颜色的仿真度极高,颜色逼真，持久性强，表面均匀、光滑。滚涂木纹的材料厚度

一般在1.0mm以下。此种工艺比起静电喷涂的价格稍微便宜，属于哑光并且表面平滑。

roller painting：

Can do solid color and wood texture color, the production process is different, no color difference during production.

The surface flatness of roll coating is higher than that of electrostatic powder spraying. The color is divided into

pearly-lustre and matt, commonly used for the Pearly-lustre on market. The biggest characteristic of roll coating is

the high degree of biofidelity color, durable,  smooth surface. The material thickness of roller coated wood grain is

below 1.0mm. This process is slightly cheaper than electrostatic spraying.

热转印木纹：

俗称木纹转印，意思是指铝方通过炉的时候通过高温加热使得贴纸上的木纹转印附和在已经喷涂好的纯色铝方通上。将喷好底色的铝

方通，手工把木纹纸包裹贴在铝方通上，然后过炉，高温加热大概5-8钟后，木纹已经被转印在铝方通上，出炉待冷却后过水，再撕

木纹纸。这种工艺对铝方通的厚度有一定要求，效果出来为哑光面，效果真实高档。优点：稳定性好，不容易脱落，由于木纹转印具

有抗腐蚀、抗冲击、耐老化、耐磨、防火、在户外使用保持15年不变色等性能。但因热转印时炉温无法精确控制，容易导致产品出现

细微色差,属于正常现象。

Commonly known as wood texture transfer, which means that the aluminum baffle the furnace by high temperature heating,

so that the stickers on the wood texture transfer print and echoed in the already painted solid color aluminum baffle.

The sprayed color aluminum baffle, hand wrapped wood paper pasted on the aluminum baffle, and then after high temperature

heating furnace, about 5-8 minutes later, the wood has been transferred to the aluminum baffle, released water after

cooling, then tear wood paper.This process has certain requirements on the aluminum baffle the thickness effect for

matte surface, high-grade real effect.Advantages: good stability, not easy to fall off, because the wood grain transfer

with corrosion resistance, impact resistance, aging resistance, wear, fire protection, outdoor use for 15 years without

discoloration and other properties. But due to the heat transfer can not accurately control the furnace temperature,

leading to products prone to minor color difference, is a normal phenomenon.
