氟碳铝单板是铝单板的一个种类，是采用优质高强度铝合金板材，经过数控折弯等技术成型，其构造主要由面板、加强筋和角码组成。

氟碳铝单板与普通铝单板不同之处是氟碳铝单板采用进口氟碳喷涂处理，氟碳（PVDF ）涂料面漆和清漆的聚偏氟乙烯树脂（KANAR500），

氟碳涂层一般分为三涂两烤、四涂三烤。

Eboss PVDF aluminum cladding is a type of aluminum cladding, is made of high strength Aluminum Alloy panel, after

CNC bending and molding, its structure is mainly composed of a panel, stiffener and bracket component. PVDF aluminum

cladding with ordinary aluminum cladding is different from the PVDF aluminum cladding imported fluorocarbon coating,

fluorocarbon (PVDF) coatings and varnish polyvinylidene fluoride (KANAR500).

易博仕氟碳涂层具有卓越的抗腐蚀性和耐候性，能抗酸雨、盐雾和各种空气污染物，耐冷热性能极好，能抵御强烈紫外线的照射，

能长期保持不褪色、不粉化，使用寿命长，是室外装饰常用选材料。

EBOSS fluorocarbon coating has excellent corrosion resistance and weatherability, resistance to acid rain, salt fog

and various air pollutants, great cold and heat resistance performance, can withstand the strong ultraviolet radiation,

can keep not fade, not powder long, long service life, is commonly used in outdoor decoration materials.

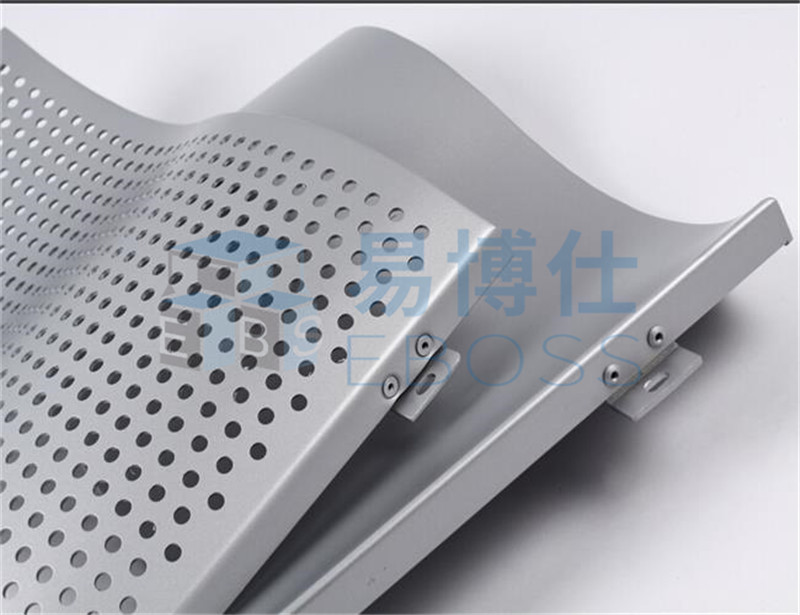

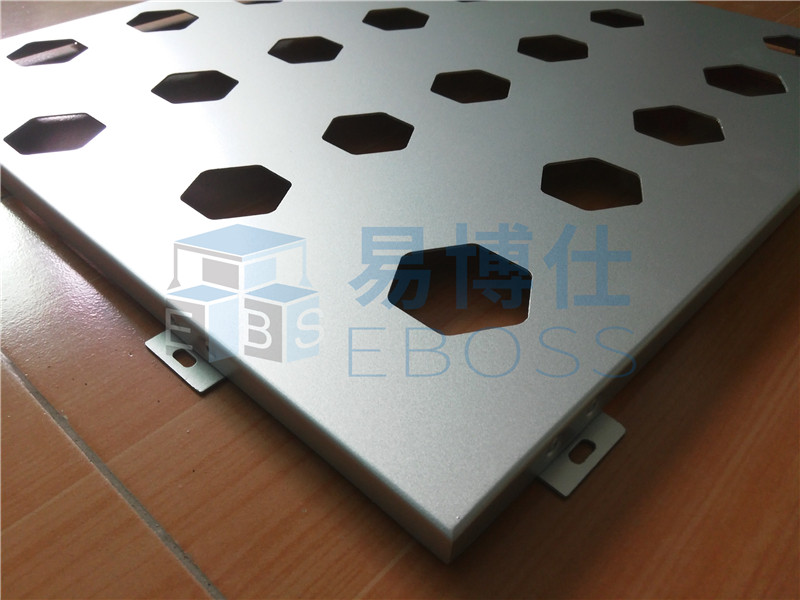

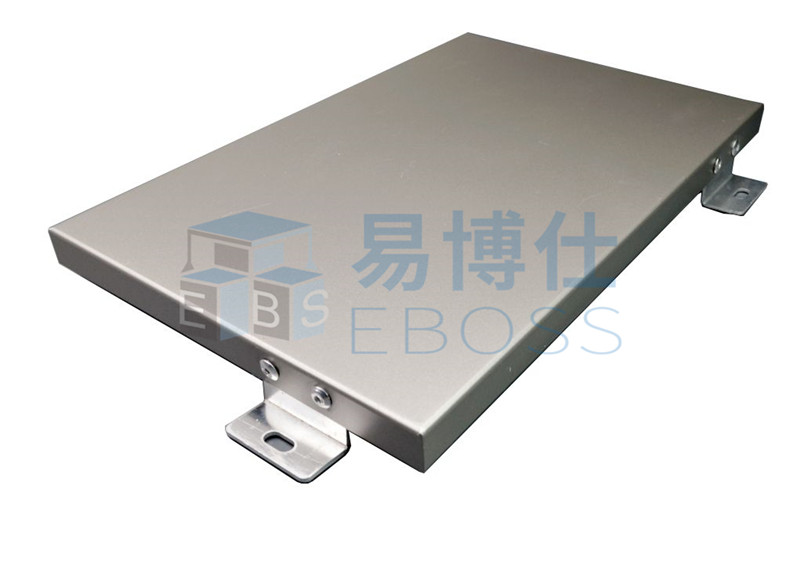

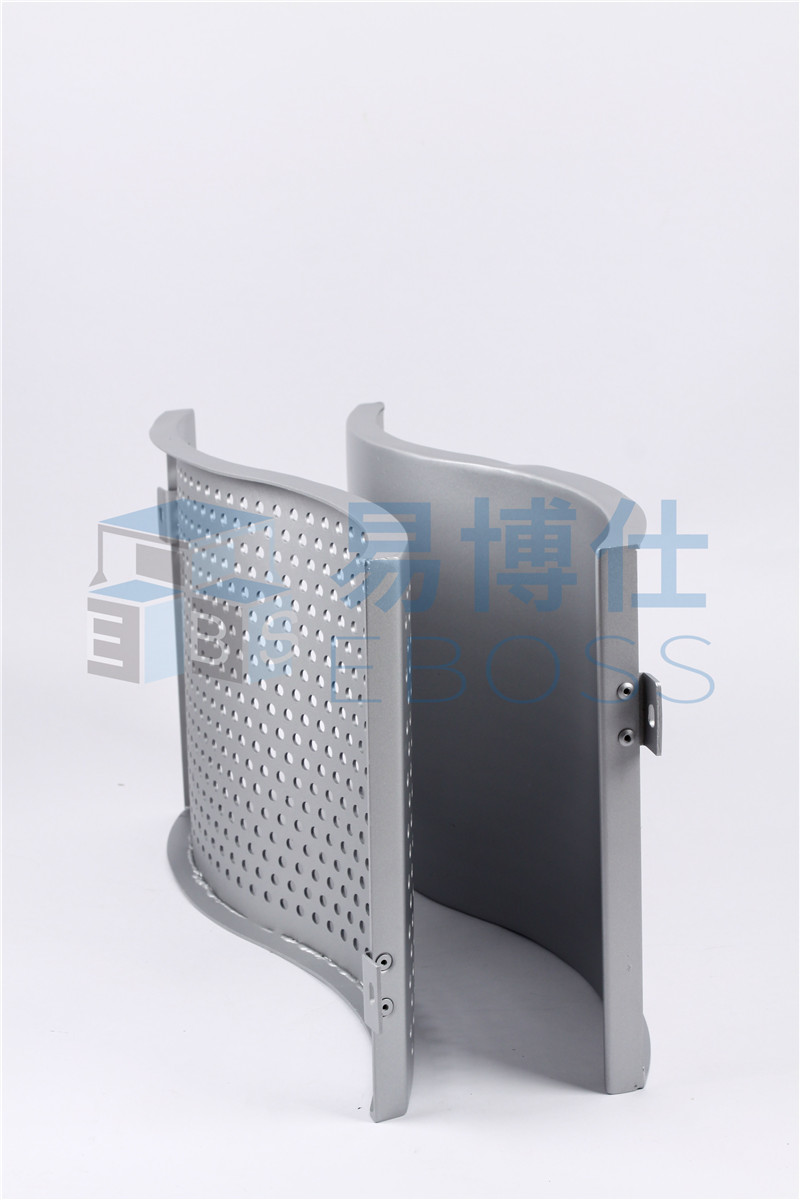

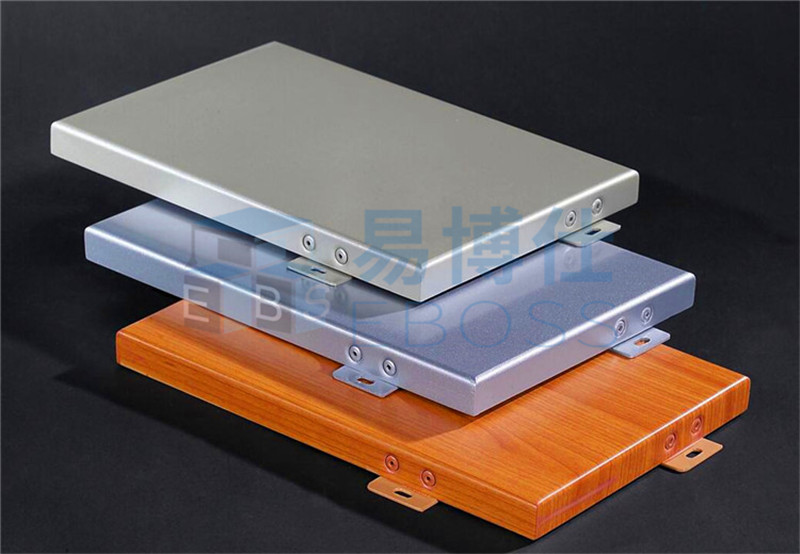

铝单板幕墙采用优质高强度铝合金板材，其常用厚度为2.0，2.5，3.0，型号为3003，状态为H24.常规材料最大尺寸为1220mm*2400mm。

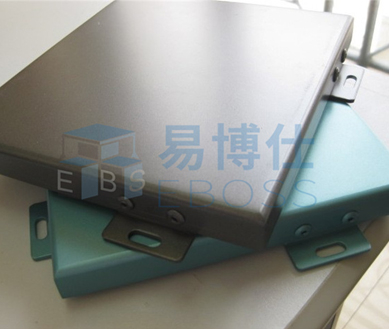

其构造主要由面板、加强筋和角码组成。角码可直接由面板折弯、冲压成型，也可在面板的折边上铆装角码成型。加强筋与板面后的

电焊螺钉连接，使之成为一个牢固的整体，极大增强了铝单板幕墙的强度与刚性，保证了长期使用中的平整度及抗震能力。如果需要

隔音保温，可在铝板内侧安装高效的隔音保温材料。

The aluminum cladding is made of high quality and high strength aluminum alloy sheet,common thickness used is 2,2.5,3,

type 3003,and status H24.The maximum size of the conventional material is 1200mm*2400mm.The structure is mainly composed

of panels,stiffeners and bracket components.

The bracket components can be directly formed from thr psnel through bending and pressing,and can also be formed

through mounting the brackets on the hems of the panel.The stiffeners are connected to the welding screw on the back

of the panel,to become a solid whole component,has greatly enhanced the strength and rigidity of the aluminum cladding,

and ensured the smoothness and seismic capacity in the long-term use.If noise and heat insulation is needed,material

with high effciency of noise and heat insulation can be installed in the inside of the aluminum sheet.

*氟碳漆耐腐蚀、抗紫外线，而且不褪色、寿命长。

*漆层均匀，色泽光亮。

*种类多样：板型、颜色、按缝等。

*质量保障，经久耐用。

*可按需要大小定制加工，满足不同的施工设计方案。

*安装维护简便灵活，降低施工和维护成本。

*铝合金材质可实现完全回收再利用，绿色环保。

*Fluorocarbon paint is corrosion corrosion resistant and anti-ultraviolet,with no fade and long service life.

*The coating is uniform,color is bright.

*Species diversity:Sheet type,color,joints,etc.

*Quality assurance,durable.

*Can be customized according to the requirements of the size to meet different construction and maintenance.

*The anstallation and maintenance are simple and flexible,reduced the cost of construction and maintenance.

*Aluminum alloy materal can be completely recycled,green and environmental friendly.

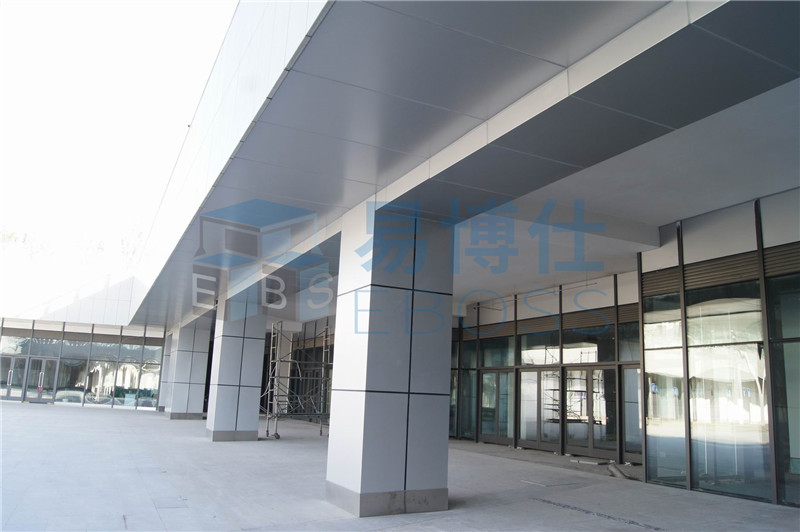

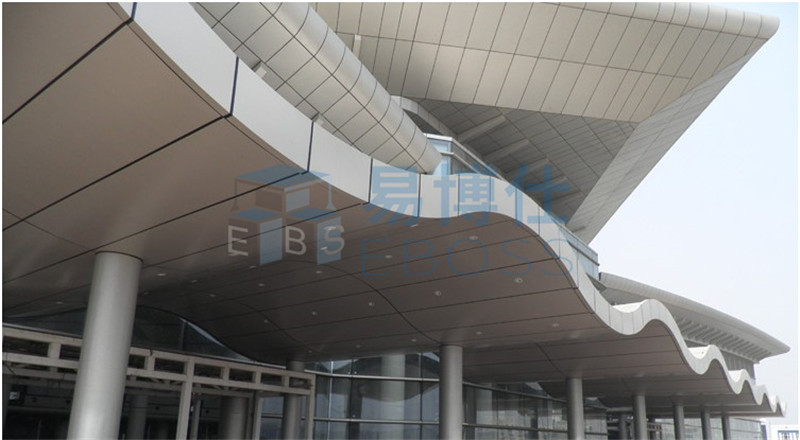

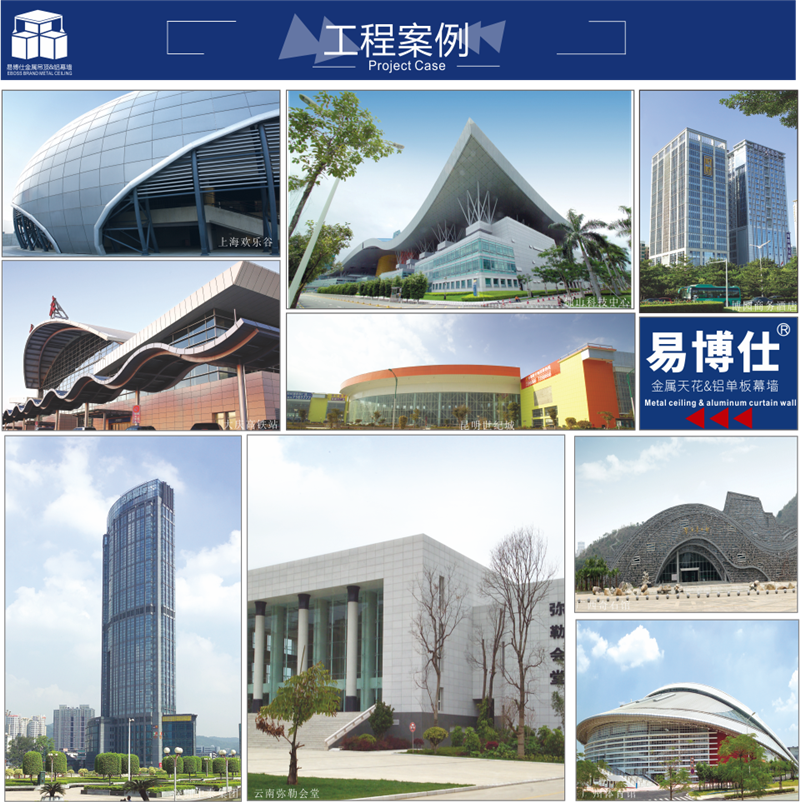

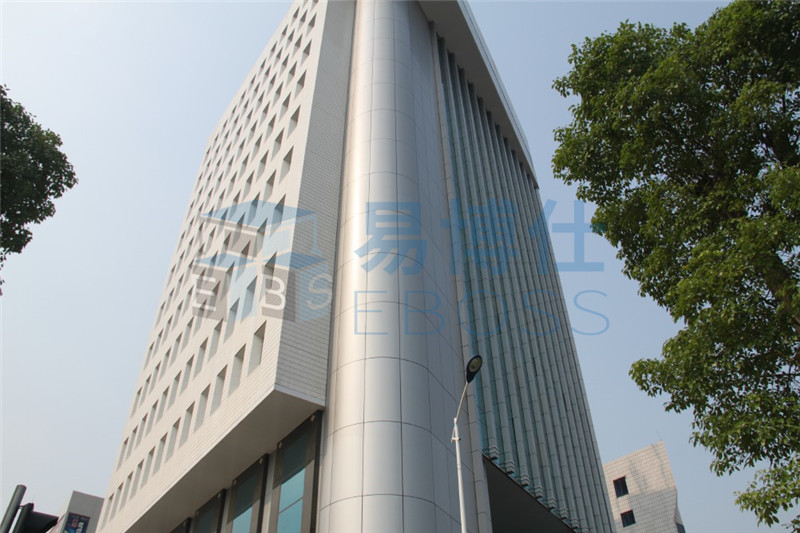

易博仕幕墙铝单板适用于各种建筑内外墙、大堂门面、雨篷、柱饰、高架走廊、人行天桥、电梯包边、阳台、广告指示牌、室内异

形吊顶等的装饰。

The aluminum cladding is applicable to the interior and exterior wall,reception appearance,awning,column decoration,

the elevated corridor,pedestrian bridges,elevator hemming,balcony,advertising signs,indoors profiled interior ceiling

decoration for all kinds of buildings.
